| System | |
|---|---|
| Serial Communication | 1 TTL |
| Video Port | 1 ETH |
| Security | AES128 Encryption |
| Power | DC12V～24V Power Supply ≤ 6W @ DC12V Power Consumption (Air) |
| Mechanical | |
|---|---|
| Dimensions | ≤ 102 × 65 × 22mm (Air) |
| Weight (Air Unit) | ≤ 160g (Air) |
| RF | |
|---|---|
| Technology | TDD-OFDM / MIMO / 1T2R |
| Modulation | QPSK / 16QAM / 64QAM |
| Data Rate | 24Mbps @ 10MHz (Peak) |
| Frequency Range | 1428～1448MHz (Standard) 2401～2481MHz (Optional) 806～826MHz (Optional) |
| Bandwidth | 5MHz / 10MHz / 20MHz |
| Tx Power | 25dBm ± 2 |
| Rx Sensitivity | -99dBm @ 5MHz |

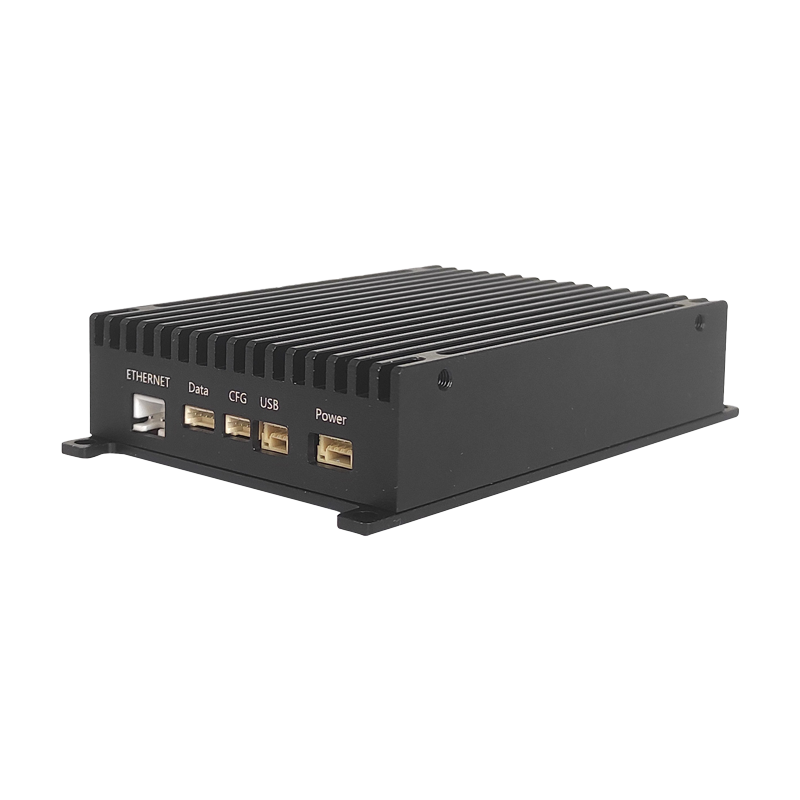

| Interface | |
|---|---|
| Serial Port Interface | JST × 1 |

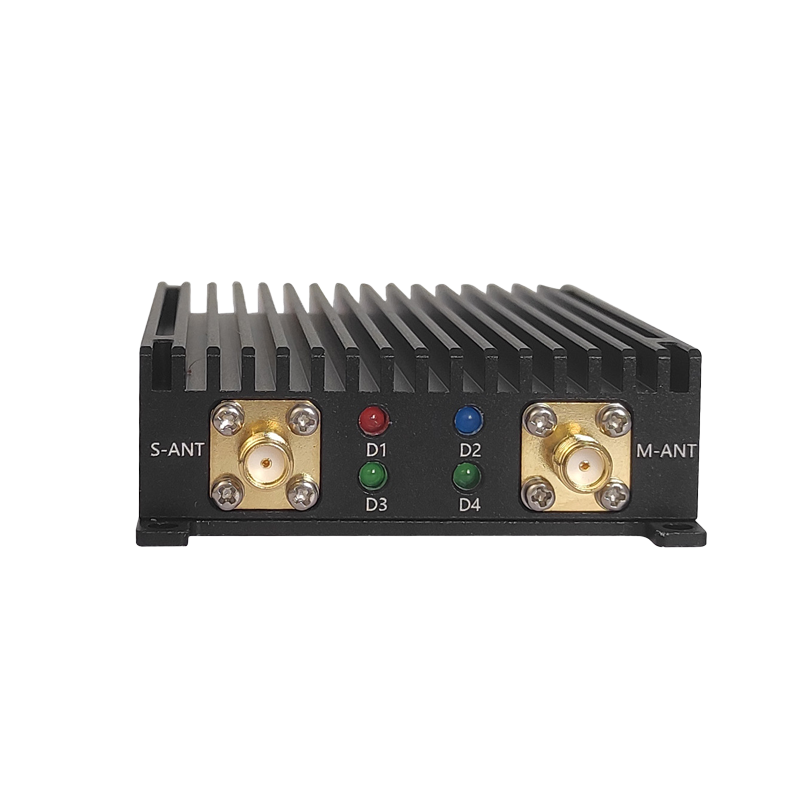

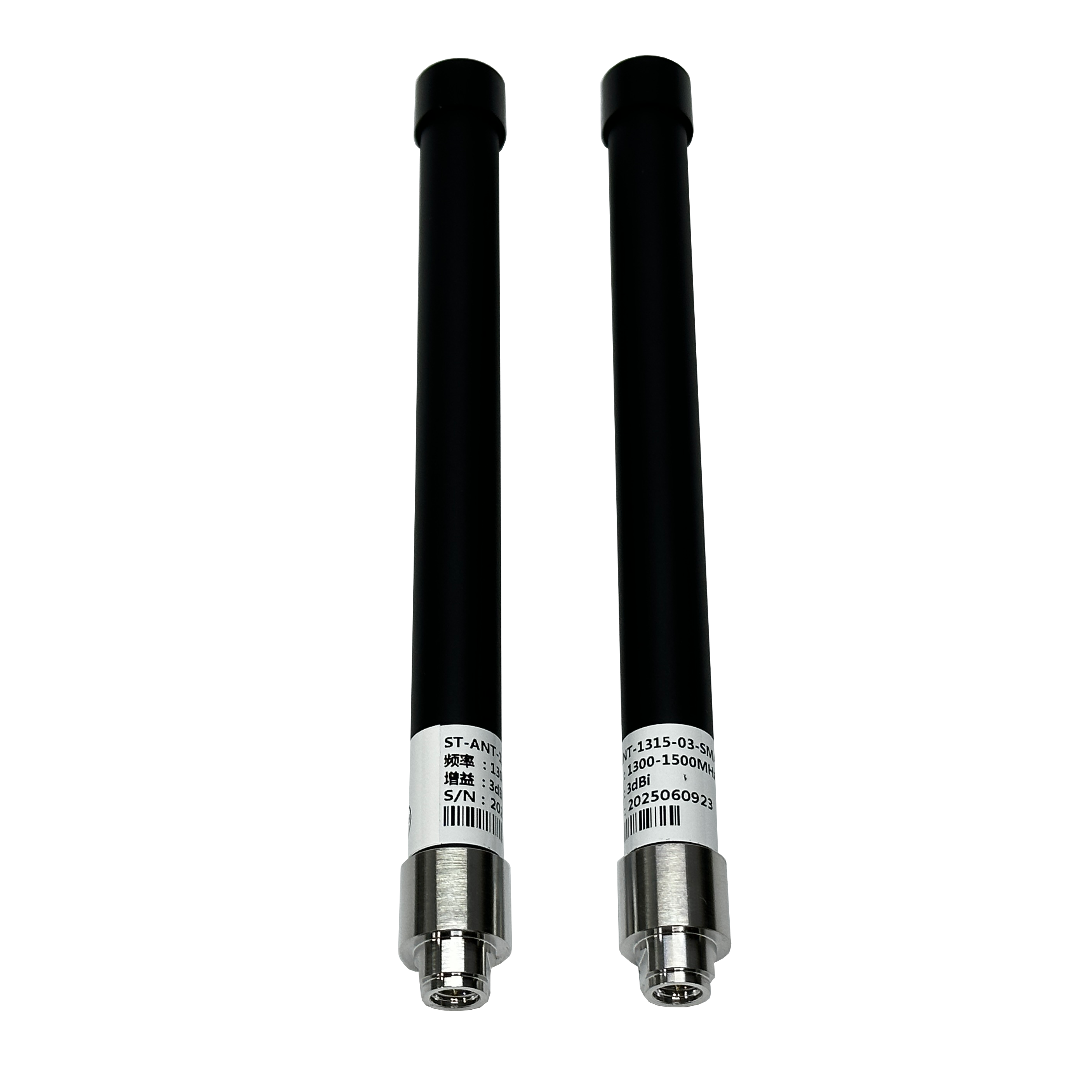

| RF Antenna | SMA × 2 |

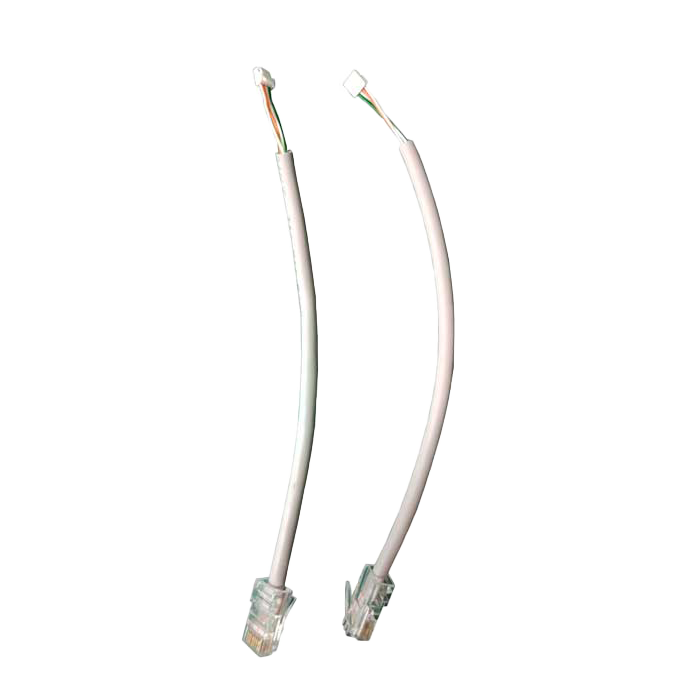

| Video Port Interface | JST(ETH) × 1 |

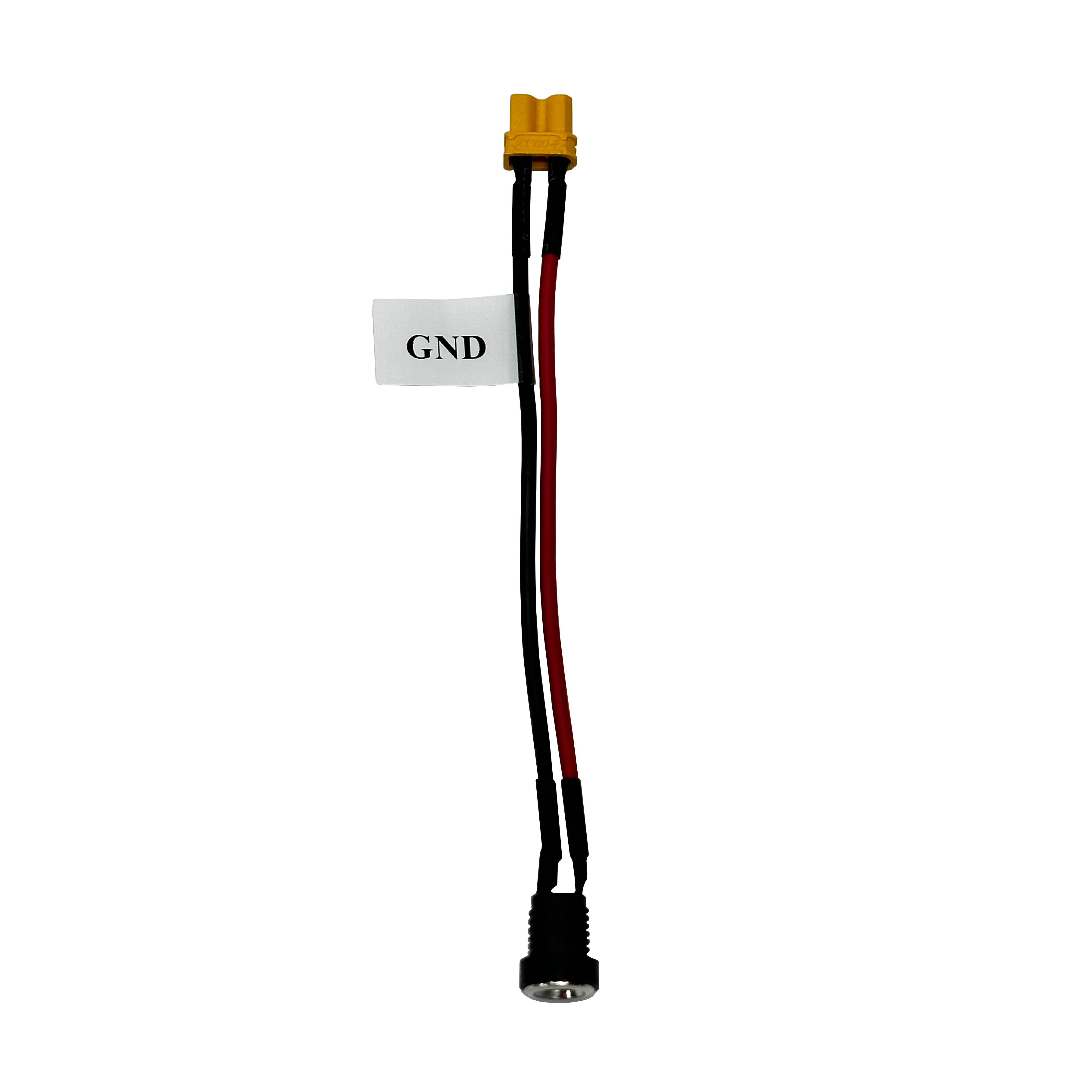

| Power Input | JST × 1 |
| S.BUS Interface | JST × 1 |
